| 7100A |

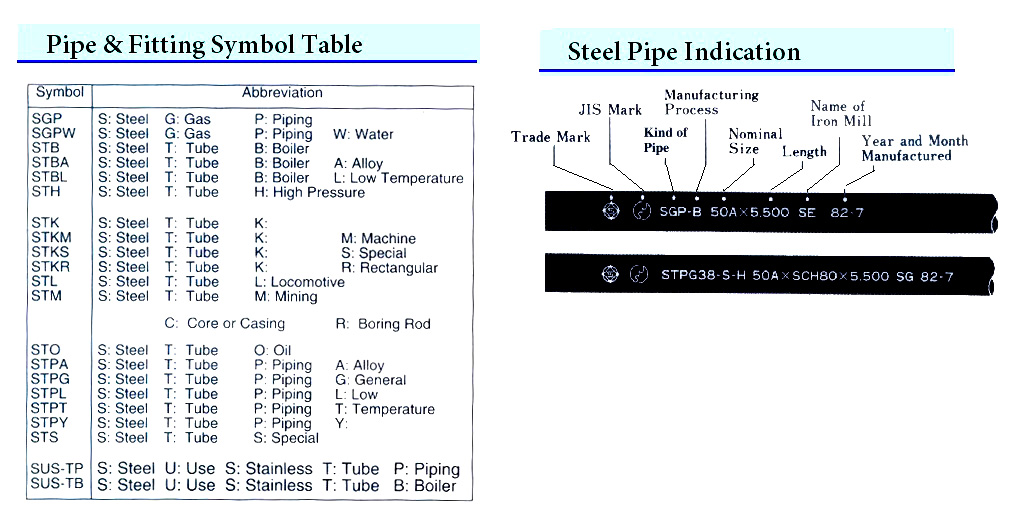

PIPE & FITTING SYMBOL TABLE (Steel Pipe Indication) |
|
PC |
|
|
| 7100B |

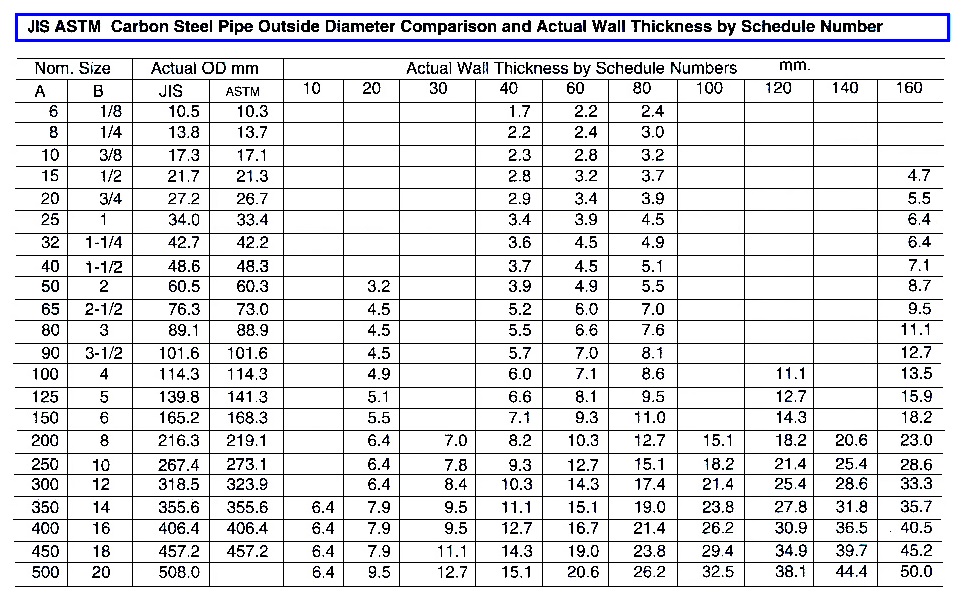

JIS ASTM CARBON STEEL PIPE OUTSIDE DIAMETER COMPARISON AND ACTUAL WALL THICKNESS BY SCHEDULE NUMBER |
|
PC |
|
|

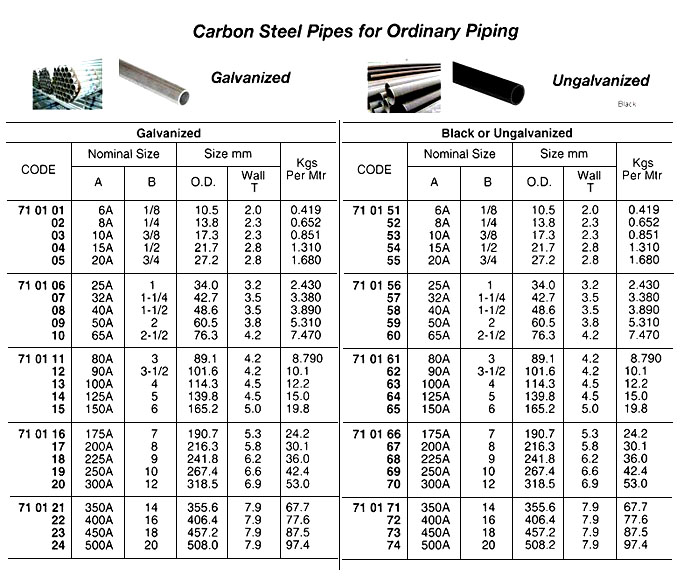

| 710101 |
CARBON STEEL PIPE, SGP, GALV., 1/8" (6A) x 5.5 MTR |
(2012-6) |
PC |
23,460
|
|
| 710102 |
CARBON STEEL PIPE, SGP, GALV., 1/4" (8A) x 5.5 MTR |
6M (2009-8) |
PC |
23,575
|
|
| 710103 |
CARBON STEEL PIPE, SGP, GALV., 3/8" (10A) x 5.5 MTR |
3 Mtr (2015-9) |
PC |
15,973
|
|
| 710104 |
CARBON STEEL PIPE, SGP, GALV., 1/2" (15A) x 5.5 MTR |
6 Mtr/Pc (2018-2) |
PC |
1,265
|
|
| 710105 |
CARBON STEEL PIPE, SGP, GALV., 3/4" (20A) x 5.5 MTR |
6 Mtr/Pc (2018-2) |
PC |
16,295
|
|
| 710106 |
CARBON STEEL PIPE, SGP, GALV., 1" (25A) x 5.5 MTR |
6 Mtr/Pc (2016-1) |
PC |
14,501
|
|
| 710107 |
CARBON STEEL PIPE, SGP, GALV., 1-1/4"(32A) x 5.5 MTR |
6 Mtr/Pc (2018-2) |
PC |
30,440
|
|
| 710108 |
CARBON STEEL PIPE, SGP, GALV., 1-1/2"(40A) x 5.5 MTR |
6 Mtr/Pc, Sea Jaekang (2018-7) |
PC |
31,107
|
|
| 710109 |
CARBON STEEL PIPE, SGP, GALV., 2" (50A) x 5.5 MTR |
6 Mtr/Pc (2018-2) |
PC |
49,266
|
|
| 710110 |
CARBON STEEL PIPE, SGP, GALV., 2-1/2"(65A) x 5.5 MTR |
6 Mtr/Pc (2018-2) |
PC |
62,951
|
|
| 710111 |
CARBON STEEL PIPE, SGP, GALV., 3" (80A) x 5.5 MTR |
6 Mtr/Pc (2018-2) |
PC |
81,765
|
|
| 710112 |
CARBON STEEL PIPE, SGP, GALV., 3-1/2"(90A) x 5.5 MTR |
6 Mtr (2015-9) |
PC |
78,154
|
|
| 710113 |
CARBON STEEL PIPE, SGP, GALV., 4" (100A) x 5.5 MTR |
6 Mtr/Pc (2018-2) |
PC |
117,288
|
|
| 710114 |
CARBON STEEL PIPE, SGP, GALV., 5" (125A) x 5.5 MTR |
6 Mtr (2015-9) |
PC |
107,042
|
|
| 710115 |
CARBON STEEL PIPE, SGP, GALV., 6" (150A) x 5.5 MTR |
6 Mtr/Pc (2016-1) |
PC |
112,826
|
|
| 710116 |
CARBON STEEL PIPE, SGP, GALV., 7" (175A) x 5.5 MTR |
|
PC |
|
|
| 710117 |
CARBON STEEL PIPE, SGP, GALV., 8" (200A) x 5.5 MTR |
6 Mtr/Pc (2016-1) |
PC |
178,595
|
|
| 710118 |
CARBON STEEL PIPE, SGP, GALV., 9" (225A) x 5.5 MTR |
|
PC |
|
|
| 710119 |
CARBON STEEL PIPE, SGP, GALV., 10" (250A) x 5.5 MTR |
1M (2009-8) |
PC |
161,000
|
|
| 710120 |
CARBON STEEL PIPE, SGP, GALV., 12" (300A) x 5.5 MTR |
|
PC |
|
|
| 710121 |
CARBON STEEL PIPE, SGP, GALV., 14" (350A) x 5.5 MTR |
|
PC |
|
|
| 710122 |
CARBON STEEL PIPE, SGP, GALV., 16" (400A) x 5.5 MTR |
1M (2009-5) |
PC |
253,000
|
|
| 710123 |
CARBON STEEL PIPE, SGP, GALV., 18" (450A) x 5.5 MTR |
2M (2009-3) |
PC |
623,300
|
|
