81. Packing & Jointing

IMPA CODE DESCRIPTION NOTE UNIT PRICE( WON ) IMAGE

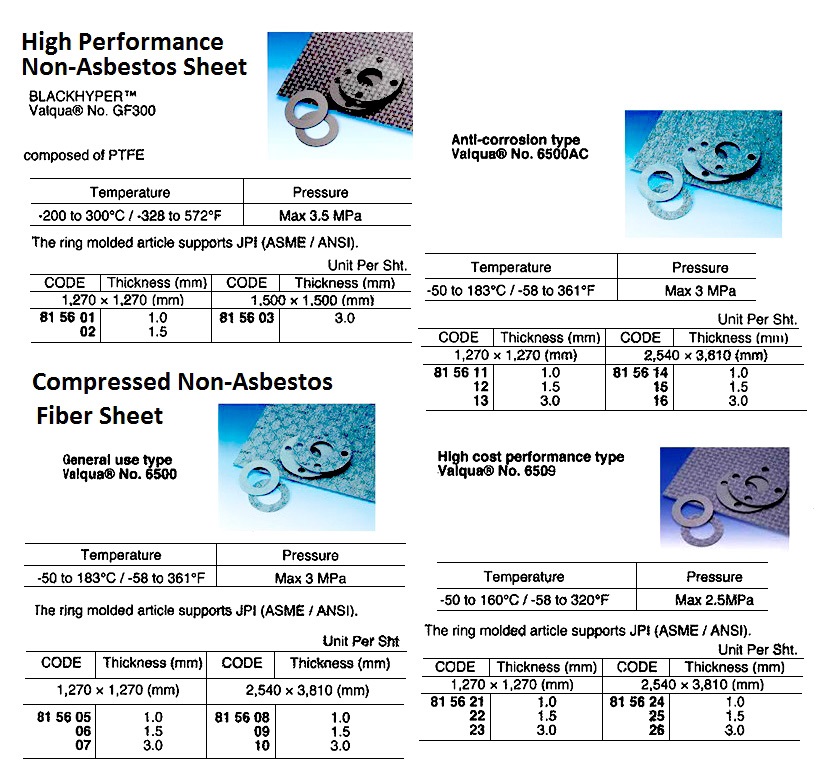

815623   HIGH COST PERFORMANCE TYPE, VALQUA NO. 6509, 1270 x 1270 MM , 3 MM T    PC
815624   HIGH COST PERFORMANCE TYPE, VALQUA NO. 6509, 2540 x 3610 MM , 1 MM T    PC
815625   HIGH COST PERFORMANCE TYPE, VALQUA NO. 6509, 2540 x 3610 MM , 1.5 MM T    PC
815626   HIGH COST PERFORMANCE TYPE, VALQUA NO. 6509, 2540 x 3610 MM , 3 MM T    PC

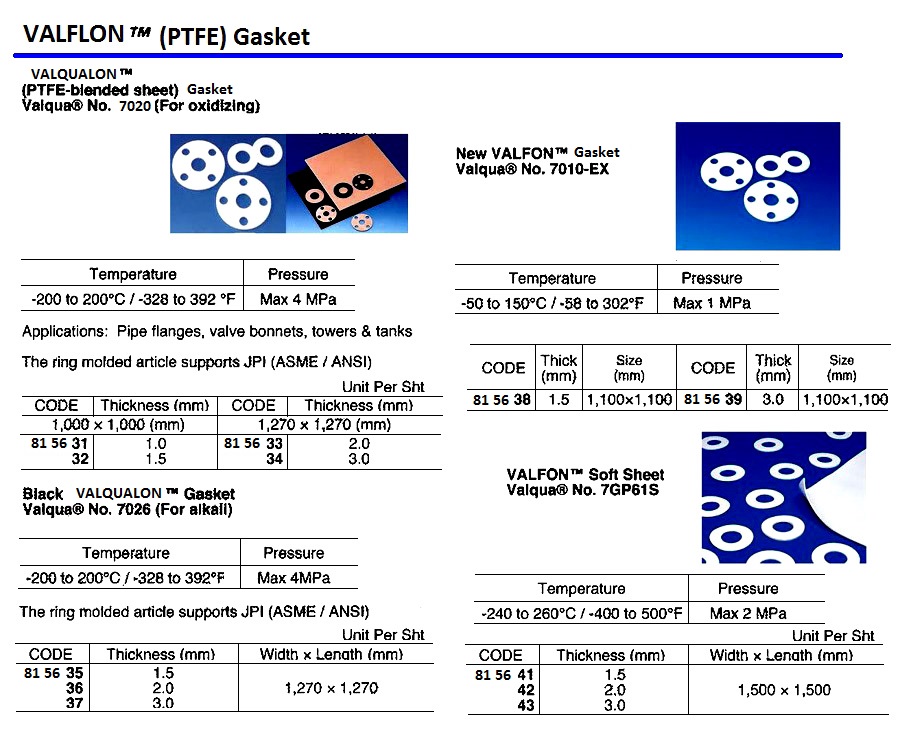

815631   PTFE GASKET, VALQUA NO.7020, 1000 x 1000 MM, 1.0 MM T Valqua (2017-10)   SHT  690,000
815632   PTFE GASKET, VALQUA NO.7020, 1000 x 1000 MM, 1.5 MM T Valqua (2018-9)   SHT  494,500
815633   PTFE GASKET, VALQUA NO.7020, 1270 x 1270 MM, 2.0 MM T Valqua (2018-9)   SHT  736,000
815634   PTFE GASKET, VALQUA NO.7020, 1270 x 1270 MM, 3.0 MM T Valqua (2018-6)   SHT  1,283,400
815635   PTFE GASKET, VALQUA NO.7026, 1270 x 1270 MM, 1.5 MM T    SHT
815636   PTFE GASKET, VALQUA NO.7026, 1270 x 1270 MM, 2.0 MM T    SHT
815637   PTFE GASKET, VALQUA NO.7026, 1270 x 1270 MM, 3.0 MM T    SHT
815638   PTFE GASKET, VALQUA NO.7010-EX, 1100 x 1100 MM, 1.5 MM T PTFE, 1000x100 mm, Samyoung Korea (2017-8)   SHT  69,000
815639   PTFE GASKET, VALQUA NO.7010-EX, 1100 x 1100 MM, 3.0 MM T Teflon, WJ (2018-12)   SHT  155,250
815641   PTFE GASKET, VALQUA NO.7GP61S, 1500 x 1500 MM, 1.5 MM T PRUDURA, USA (2017-12)   SHT  1,863,000
815642   PTFE GASKET, VALQUA NO.7GP61S, 1500 x 1500 MM, 2.0 MM T Valqua (2017-11)   SHT  862,500
815643   PTFE GASKET, VALQUA NO.7GP61S, 1500 x 1500 MM, 3.0 MM T PRUDURA, USA (2017-12)   SHT  2,127,500

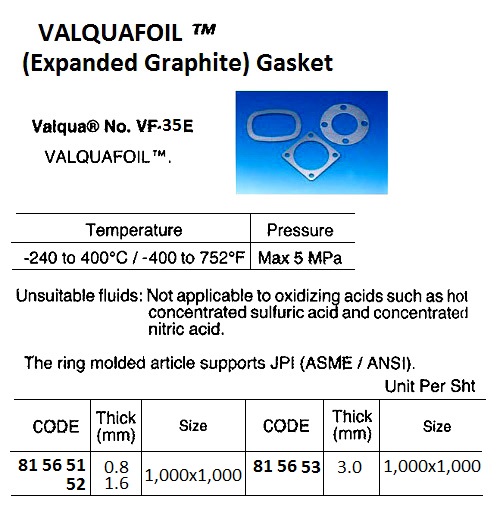

815651   EXPAND GRAPHITE GASKET, VALQUA NO. VF-35E, 1000 x 1000 MM, 0.8 MM T    SHT
815652   EXPAND GRAPHITE GASKET, VALQUA NO. VF-35E, 1000 x 1000 MM, 1.6 MM T    SHT
815653   EXPAND GRAPHITE GASKET, VALQUA NO. VF-35E, 1000 x 1000 MM, 3.0 MM T    SHT

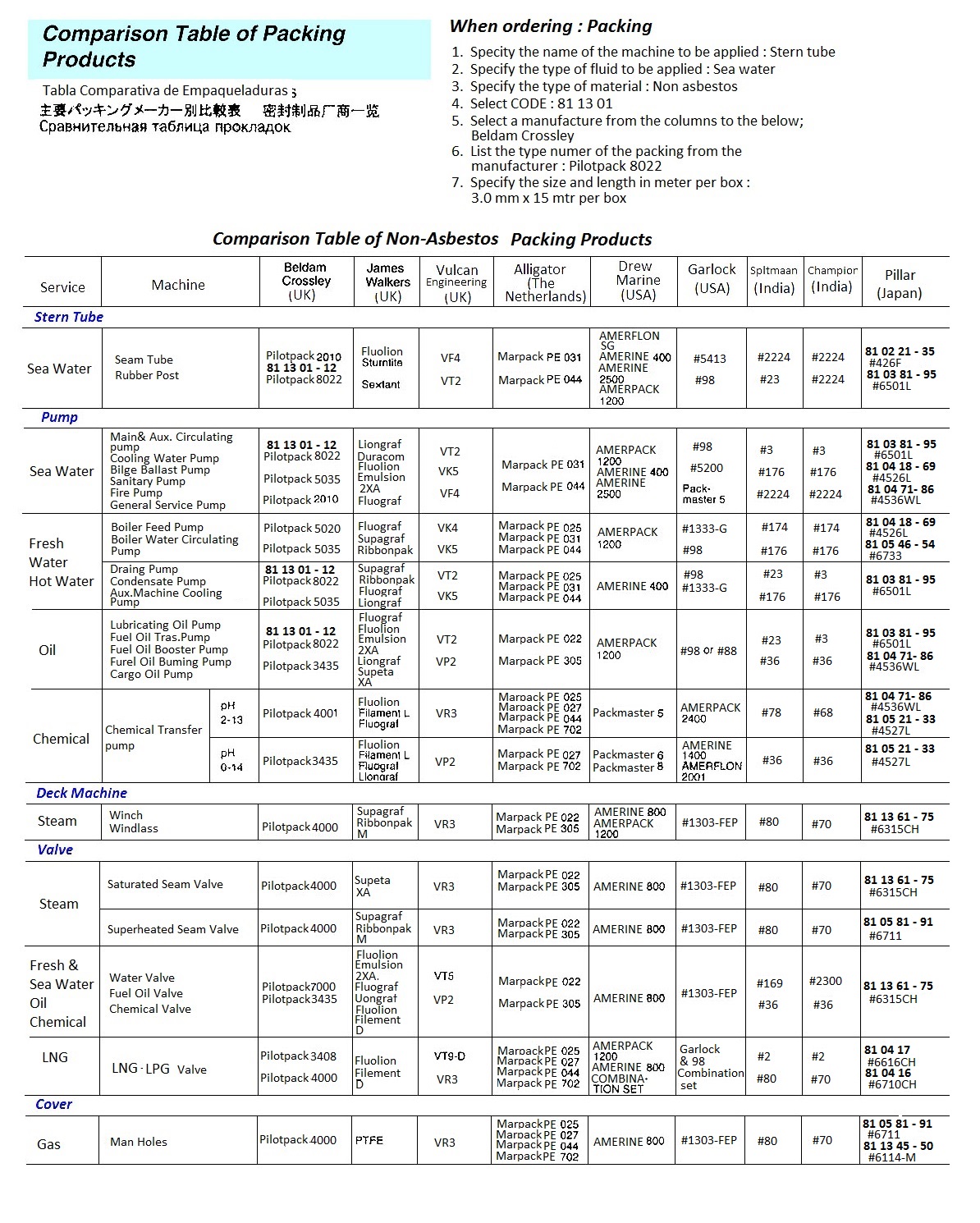

81Tab1   Comparison Table of Non-Asbestos Packing Products    LOT

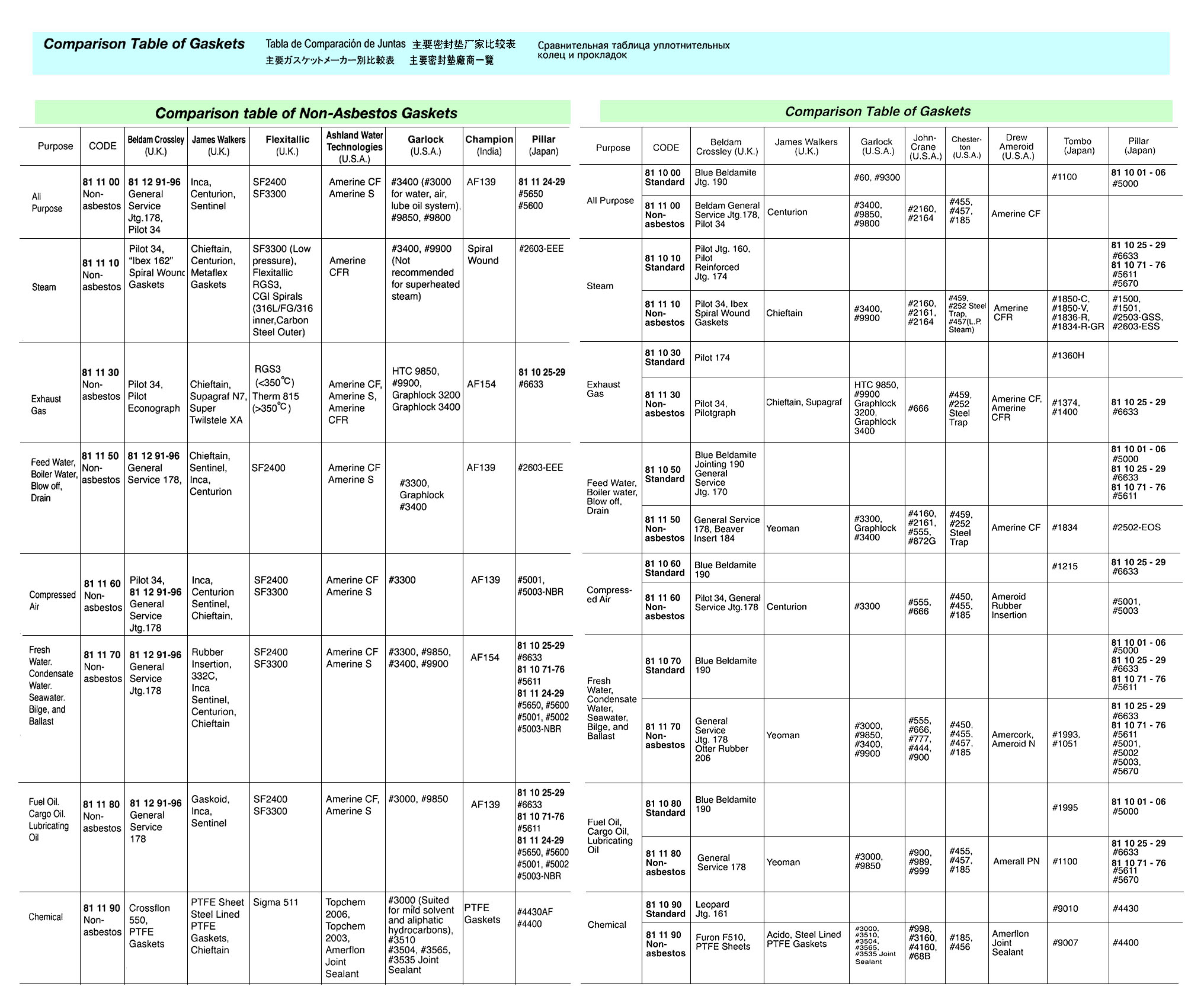

81Tab2   Comparison Table of Non-Asbestos Gaskets    LOT

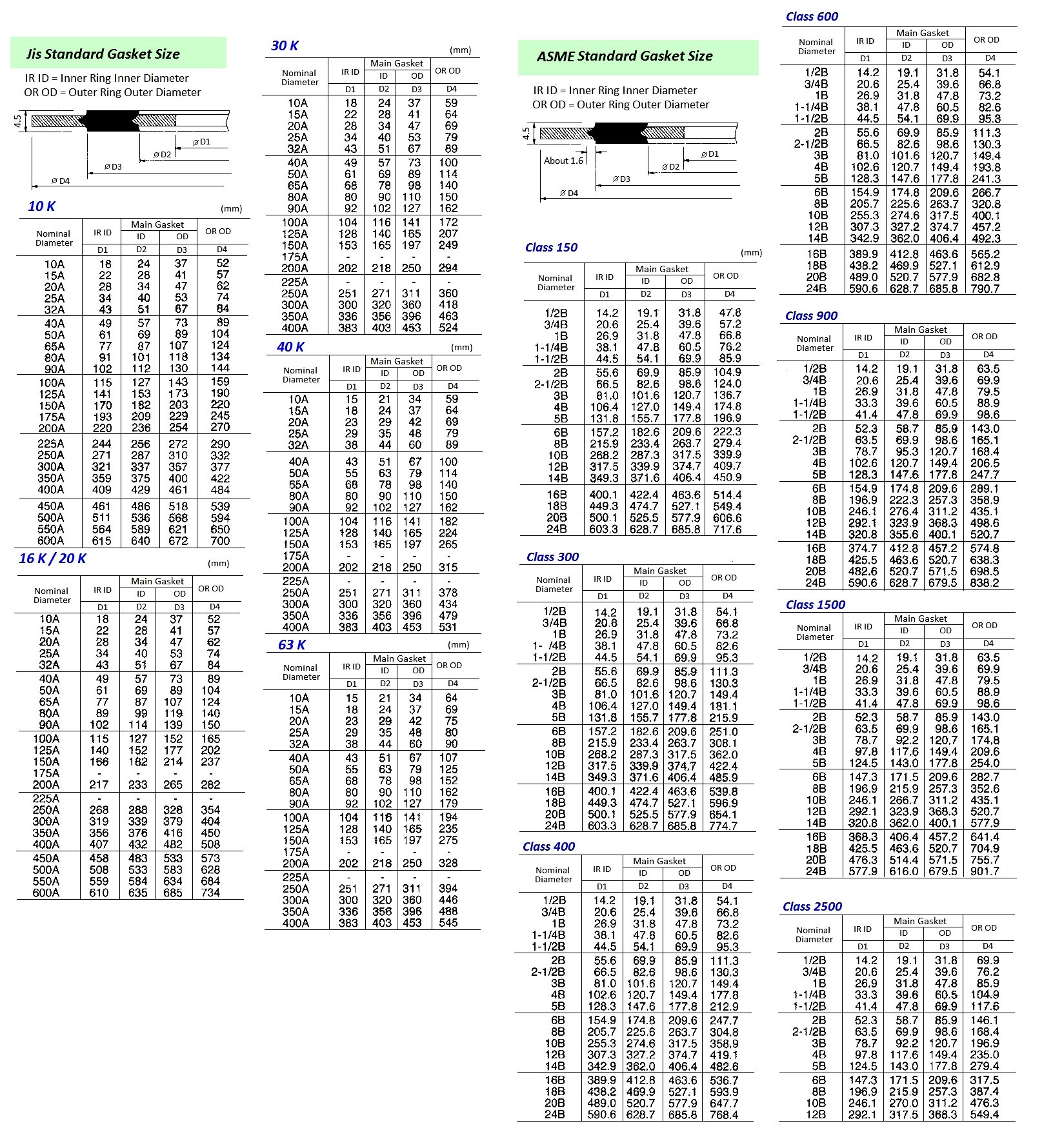

81Tab3   JIS Standard Gasket Size    LOT

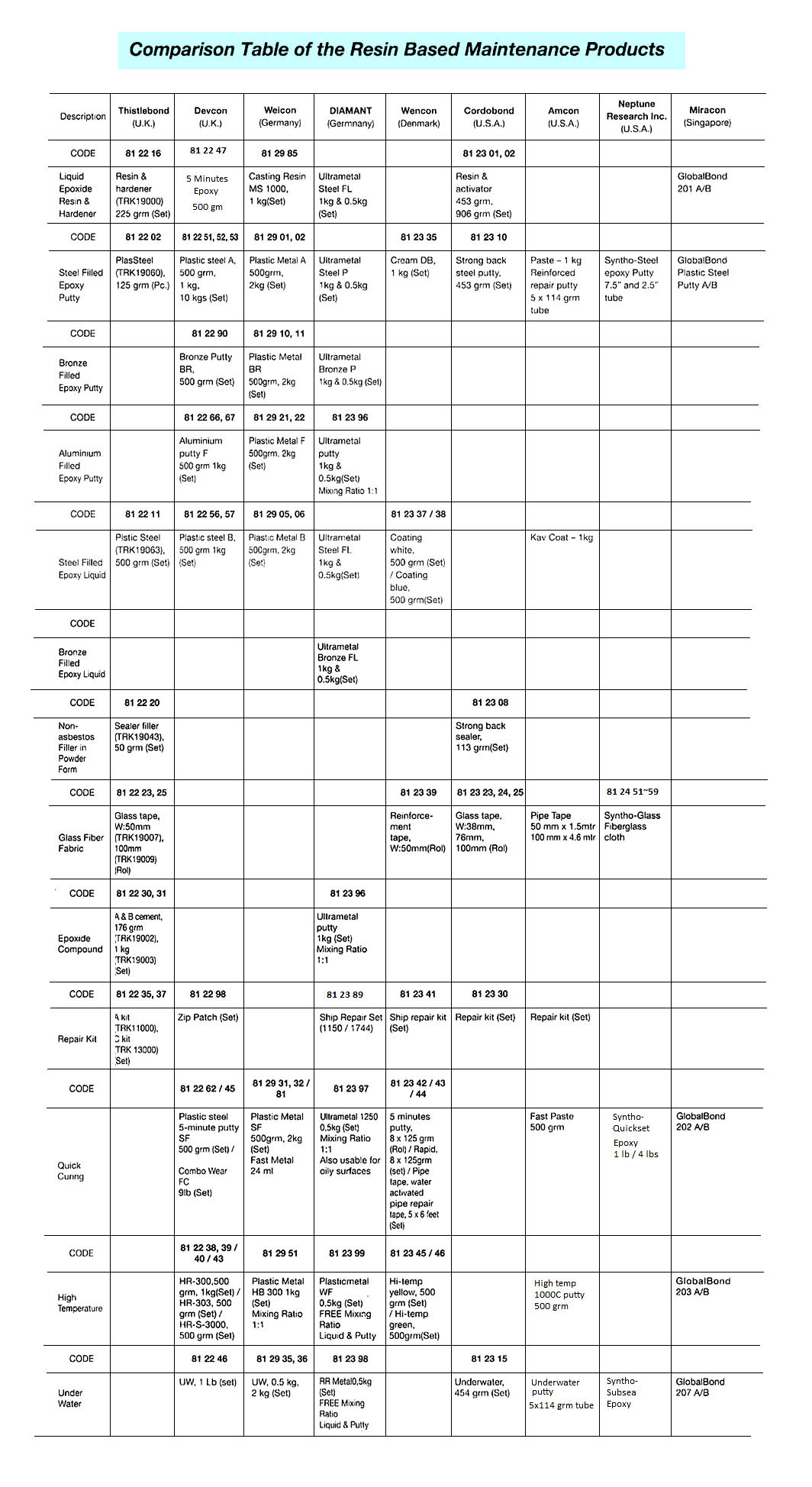

81Tab4   Comparision Table of the Resin Based Maintenance Products    LOT

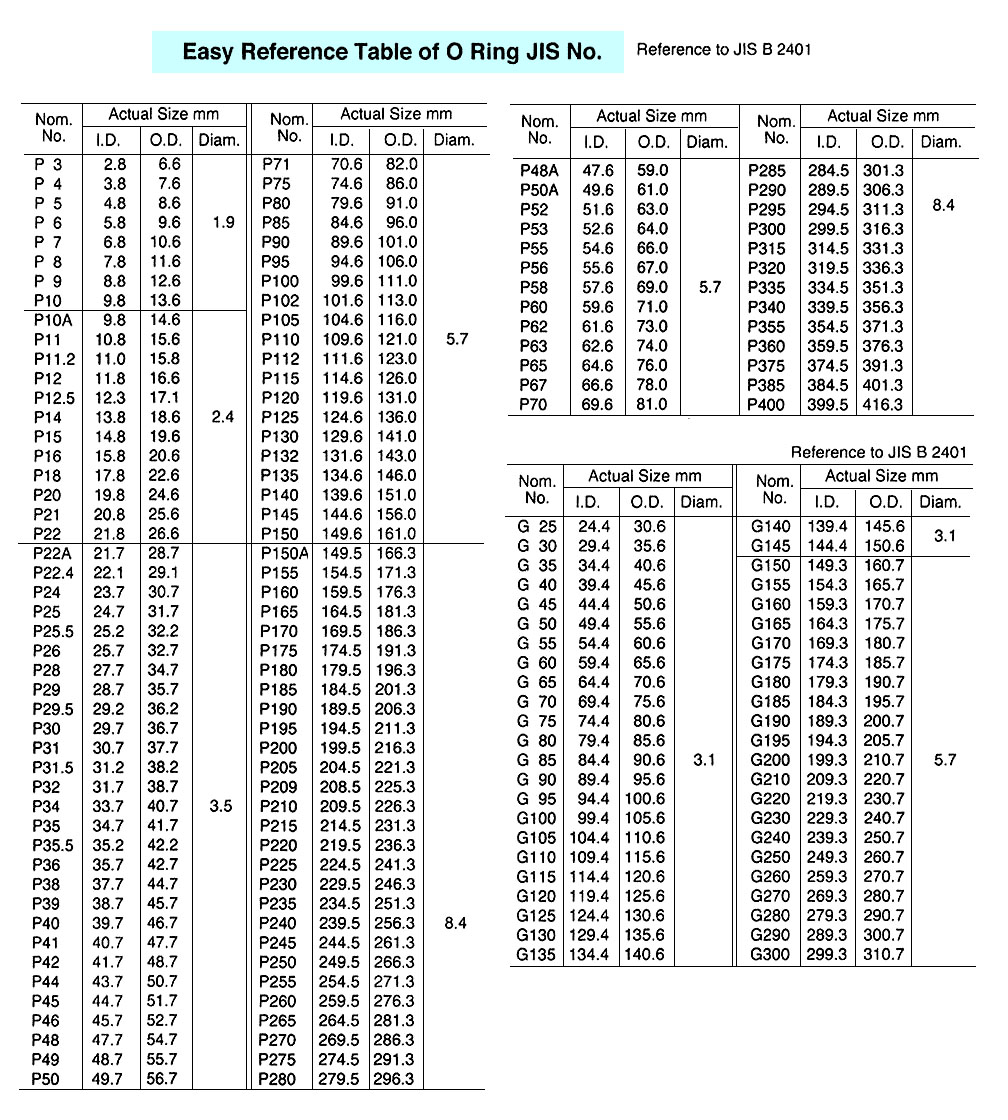

81Tab5   Easy Reference Table of O Ring JIS Number    LOT
